LoPro Edge 160W Dimmable LED Grow Light

Name: LoPro Edge 160W Dimmable LED Grow Light
Brand: Active Grow
SKU: AG/160LPE/4FT/PS
Price: 401.0 CAD
Availability: InStock

Our first dimmable fixture for high-output vegetables and high-light plants. A low-profile 4-foot light that dims directly from the EDGE Controller.

432 µmol/s PBAR · 0–10V Dimming · EDGE Controller Ready · Daisy-Chain Ready

Quantity

Free US shipping

Easy returns within 30 days

5-year warranty

High Output. Full Control.

Most grow lights give you one level. LoPro Edge gives you control over it.

The LoPro Edge 160W delivers 432 µmol/s of PBAR in a low-profile 4-foot fixture, and dims from 0–10V through the EDGE Controller. Built for high-output vegetables and high-light plants, at home or commercial scale.

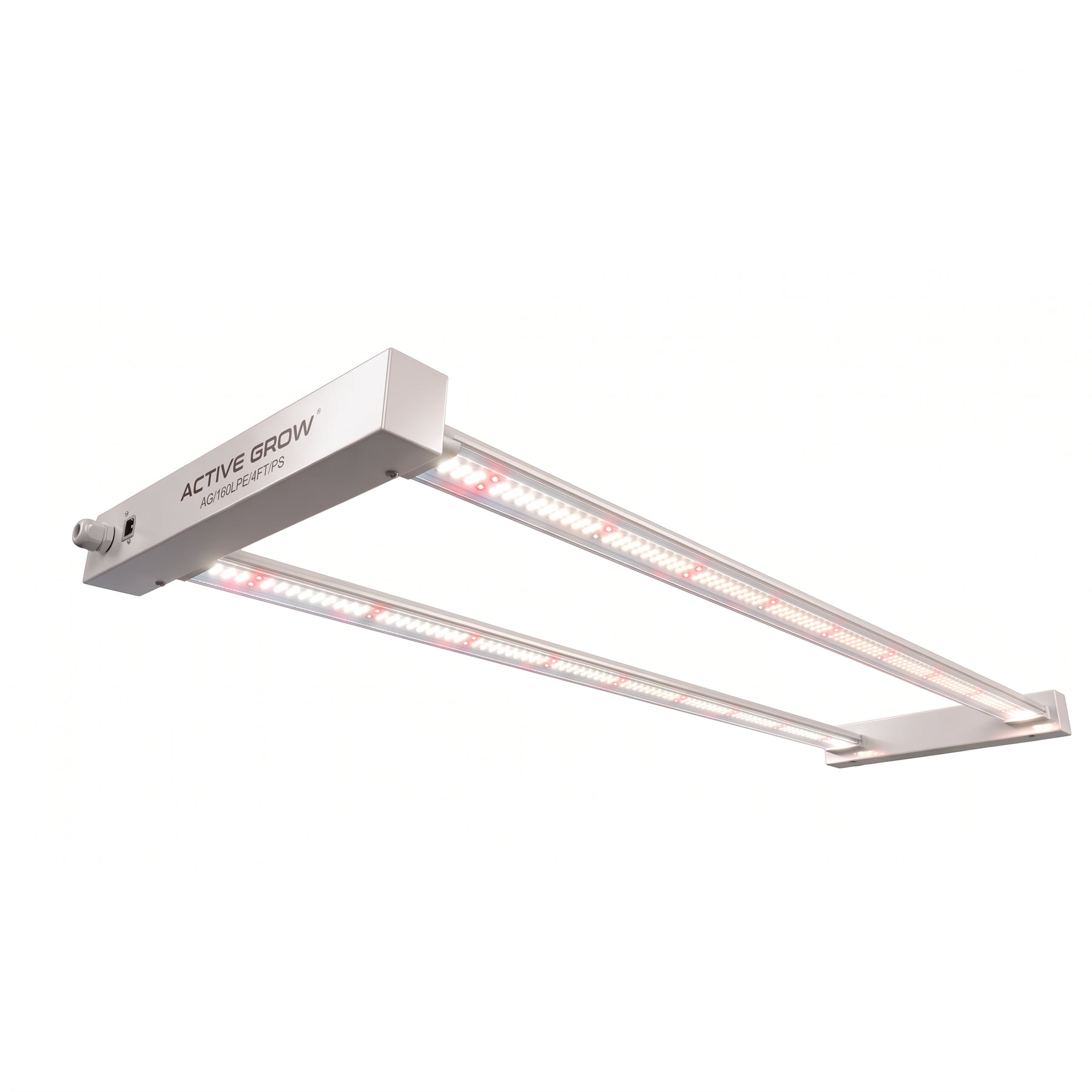

LoPro Edge 160W LED Grow Light — low-profile 4-foot linear fixture, about 12" × 46"
0–10V Dimming Cable — connects the fixture to the EDGE Controller for dimming
Hydroponic hangers (2) — for suspending the fixture from its four mounting clips
Power cord

What you need to dim it

The LoPro Edge dims through an RJ11 0-10V control port. The Active Grow EDGE Controller is the recommended match: connect it with the included cable and you get Auto, Timer, and Cycle modes, including automatically reducing output when temperatures climb. Other controllers with a compatible RJ11 0-10V output will also dim it. With no dimmer connected, the fixture runs at full output.

Commercial production spectrum, built for racks, open grow spaces and greenhouses. Compact vegetative growth, with the quality to finish flowers and fruit.

From box to fully connected system - watch the full setup, start to finish here: Watch now

Active Grow proudly participates in the 1% for the Planet® program and donates 1% of all annual sales to organizations that promote sustainable agricultural practices.

How It Works

LoPro Edge connects to the EDGE Controller through its LAMP port, so the controller sets the fixture's output level directly. Power and control are two separate connections, and both can be daisy chained from fixture to fixture.

Connection	How It Works
Power	120–277V AC input, wired separately from control
Control to EDGE Controller	RJ11 cable from the fixture to the controller's LAMP port for 0–10V dimming
Fixture-to-fixture control	RJ11 from one LoPro Edge to the next
Fixture-to-fixture power	AC power daisy chain: up to 3 fixtures at 120V, 4 at 208V, 5 at 240V, 6 at 277V

The LAMP channel can run in any of the controller's modes: Off, On (fixed output), Auto (responds to your temperature targets, including reducing light output if temperatures climb too high), Timer (scheduled), or Cycle.

Do not exceed the maximum number of fixtures in a power daisy chain, and always follow applicable circuit, connector, and electrical-code requirements. Disconnect power before installation, adjustment, or servicing.

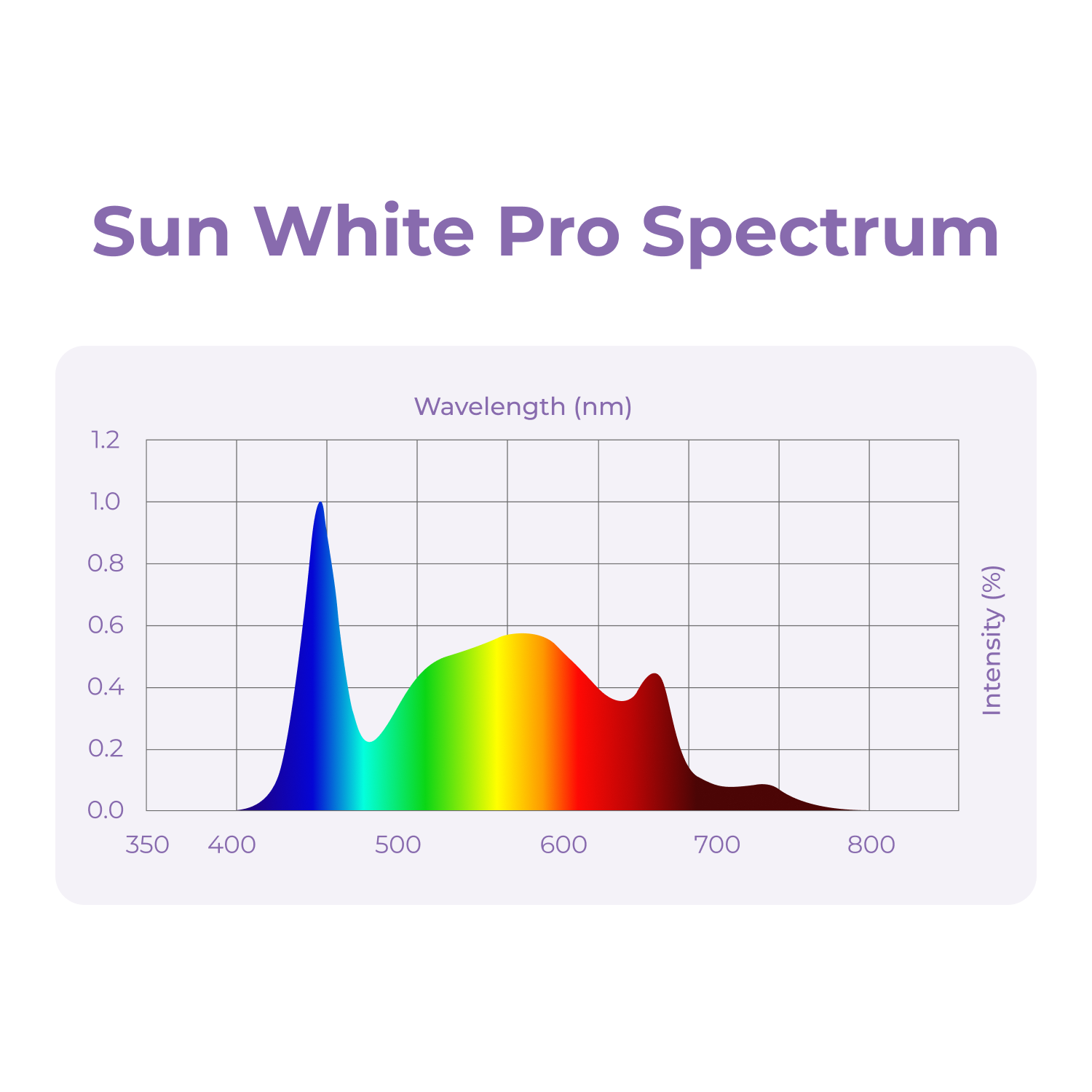

Sun White Pro Spectrum

LoPro Edge uses our Sun White Pro spectrum, a balanced, white-based commercial production spectrum. It starts with 5000K white LEDs and a blue peak near 456 nm, then adds supplemental 660 nm deep red and 730 nm far red. It isn't built around heavy red or the warm, flower-only look of many consumer grow lights. Designed for rack and shelf growing, it covers a wide range of crops, from compact vegetative growth through flowers and fruit.

Spectrum Component	Detail
Blue	Output concentrated around 450–456 nm, with a peak wavelength of ~456 nm
White (5000K)	Broad output across approximately 500–650 nm; 5,209K CCT, 85.7 CRI
Deep Red	Supplemental output at 660 nm
Far Red	730 nm; 13.35 µmol/s, about 3.17% of 400–800 nm PPF
Red : Far-Red Ratio	11.49
LED Types	3030 5K + 3030 Red + 3030 730 nm

Where warm, red-heavy spectrums are tuned for flowering alone, Sun White Pro is built for whole-crop production. Blue light is associated with compact vegetative growth, and the added red and far red support flowering and fruiting. Because the light is white, you can also see plant color and health accurately, with an 85.7 CRI.

Dimmable From the EDGE Controller

LoPro Edge is our first dimmable fixture. Connect it to the EDGE Controller's LAMP port with RJ11 and the controller sets its output level directly, from 0–10V. That includes automatically reducing light output if temperatures climb too high.

High Output for High-Light Plants

160W delivers 432 µmol/s of PBAR at 2.70 µmol/J, with an average of 400 µmol/m²/s PPFD across a 2' × 4' area at full output. Built for high-output vegetables and other high-light crops, at home or commercial scale.

Full Spectrum for Color and Quality

The upgraded Sun White Pro spectrum combines 5000K white, a blue peak near 456 nm, 660 nm deep red, and 730 nm far red, tuned for vegetables, herbs, and flowering plants.

Low Profile, Easy to Hang

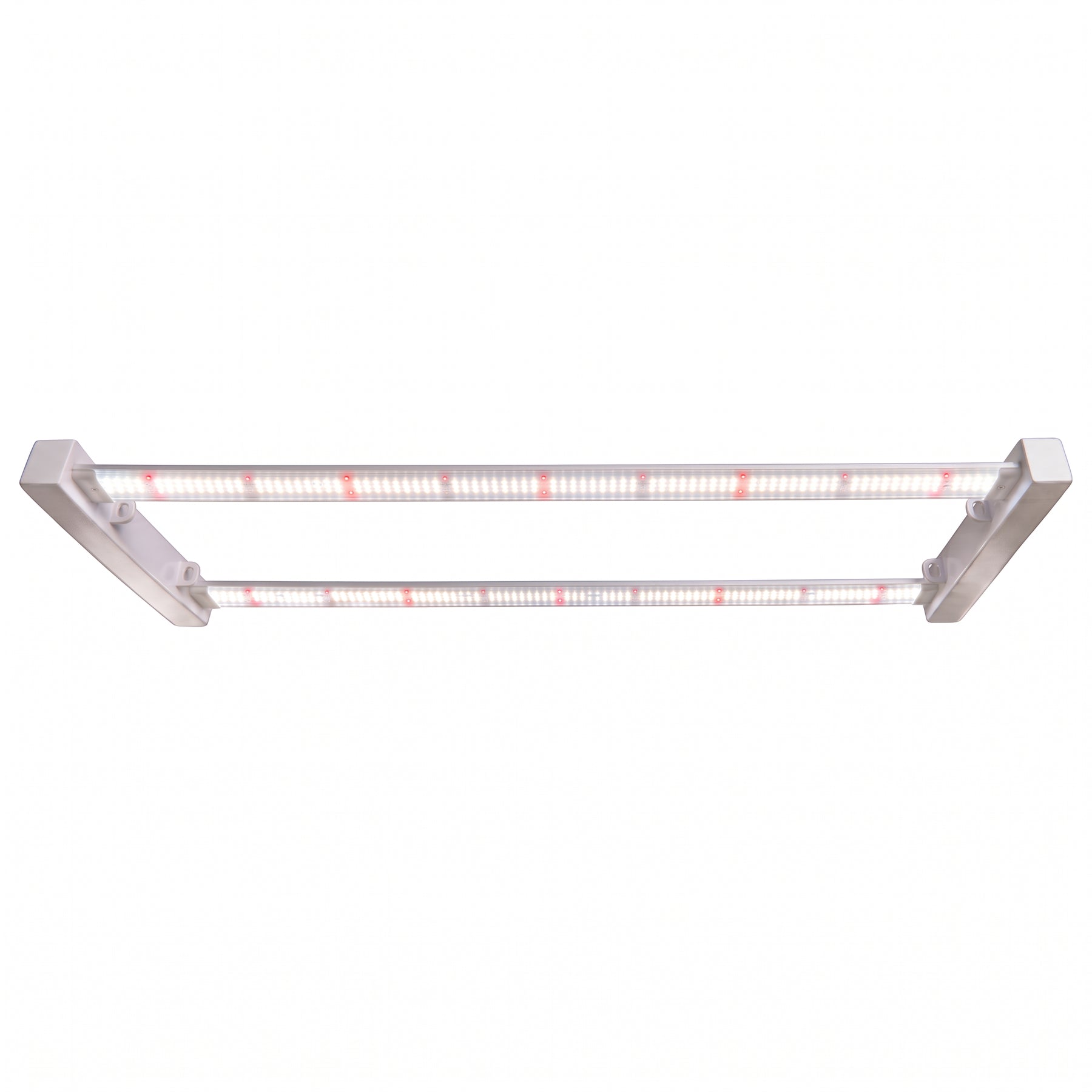

A slim 4-foot fixture, about 46.5" x 13.25" × 2", with two parallel LED bars. It hangs from four mounting clips, two per end, using the included hydroponic hangers.

Daisy-Chain Power and Control

Power: chain AC power from fixture to fixture, up to 3 fixtures at 120V, 4 at 208V, 5 at 240V, or 6 at 277V.
Control: link fixtures with RJ11 so they dim together from one EDGE Controller.

Power and RJ11 control are separate connections. Do not exceed the maximum number of fixtures in a power chain, and always follow applicable circuit, connector, and electrical-code requirements.

Built Into the Walden Grow Tent Kit

Our top-tier Walden kit pairs three LoPro Edge fixtures, one per shelf, with the EDGE system for a complete high-end growing setup.

Specifications

At a Glance

Power	160W
PPF (400–700 nm)	416 µmol/s
PPE (400–700 nm)	2.60 µmol/J
Input voltage	120–277V AC
Dimming	0–10V
Control	RJ11, Active Grow EDGE Controller
Warranty	5 years

Performance

Nominal wattage	160W
PPF (400–700 nm)	416 µmol/s
PPE (400–700 nm)	2.6 µmol/J
Extended PPF (400–800 nm)	432 µmol/s
Extended PPE (400–800 nm)	2.7 µmol/J

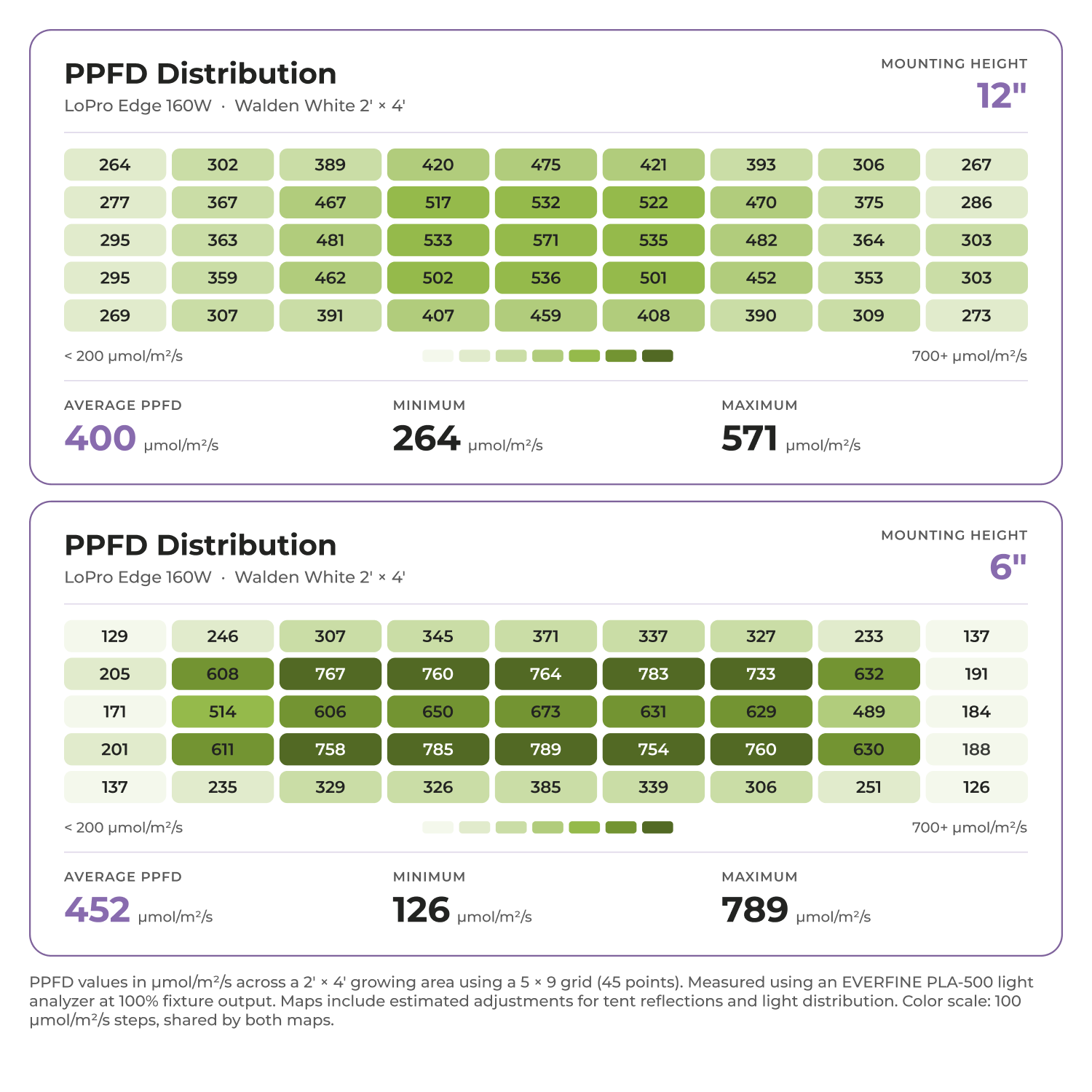

Average PPFD	400 µmol/m²/s across a 2' × 4' area at 100% output at 12'' above the canopy

Spectrum

Spectrum	Sun White Pro / LoPro Edge full spectrum
LED types	3030 5K + 3030 Red + 3030 730 nm
CCT	5,200K
CRI	86
Peak wavelength	~450 nm
Far red	730 nm
Far-red output	13.35 µmol/s (~3.17% of 400–800 nm PPF)
Red : far-red ratio	11.49

Electrical & Control

Input voltage	120–277V AC
Dimming	0–10V dimmable
Control connection	RJ11
Controller compatibility	Active Grow EDGE Controller
Control daisy chain	RJ11, fixture to fixture
Power daisy chain	AC power, fixture to fixture

Power and RJ11 control are separate connections.

Physical Design

Model / SKU	AG/160LPE/4FT/PS
Product type	Low-profile linear LED grow light
Form factor	4-foot linear fixture
Approx. dimensions	46.5" × 13.25" × 2.0" (1,080 × 337 × 51 mm)
Approx. weight	7.9 lbs (3.6 kg)
Construction	Two parallel LED bars joined by end housings
Mounting	Suspended with hydroponic hangers
Mounting points	Four mounting clips, two per end

Warranty & Certifications

Warranty	5 years. See warranty details
Certifications	CE

Power Daisy-Chain Limits

120V	Up to 3 fixtures
208V	Up to 4 fixtures
240V	Up to 5 fixtures
277V	Up to 6 fixtures

Do not exceed the maximum number of connected fixtures shown above. Always follow applicable circuit, connector, and electrical-code requirements.

Installation & Safety

Before any work	Disconnect power before installation, adjustment, or servicing.
Hanging	With power disconnected, connect the two hydroponic hangers to the four designated mounting clips, two per end of the luminaire.
Housing	Do not drill, cut, punch, enlarge, or otherwise modify any openings in the luminaire housing.
Daisy chain	Do not exceed the specified maximum number of fixtures in a power daisy chain.

FAQs

Yes. It's our first dimmable fixture for commercial and home growers. It dims from 0-10V and connects to the Active Grow EDGE Controller with RJ11, so the controller sets the output level directly.

The LoPro Edge is designed to work with the Active Grow EDGE Controller, which is sold separately. The included 0-10V dimming cable connects the fixture to the controller and can also be used with other RJ11 port 0-10V dimmers.

The fixture, a 0-10V dimming cable, two hydroponic hangers, and a power cord.

160W produces 407.5 µmol/s of PPF at 2.60 µmol/J. At 100% output, average PPFD across a 2' × 4' area is 550 µmol/m²/s. It's built for high-output vegetables and other high-light plants.

LoPro Edge uses a balanced, commercial-style production spectrum designed for a wide range of crops, not just flowering. It supports compact vegetative growth and the quality of flowers and fruit, so it suits high-output vegetables, herbs, leafy greens, and flowering and fruiting plants, at home or commercial scale. At 100% output it delivers an average of 550 µmol/m²/s PPFD across a 2' × 4' area at 12'' away from the canopy, and 0-10V dimming through the EDGE Controller lets you lower the output for plants that need less light.

You can daisy chain AC power from fixture to fixture, up to 3 fixtures at 120V, 4 at 208V, 5 at 240V, or 6 at 277V. Control is a separate RJ11 connection from fixture to fixture. Do not exceed the power-chain limit, and follow applicable circuit, connector, and electrical-code requirements.
